260L High-Pressure CNG Type 2 Cylinder: A Safe and Efficient Natural Gas Storage Solution

Product Overview

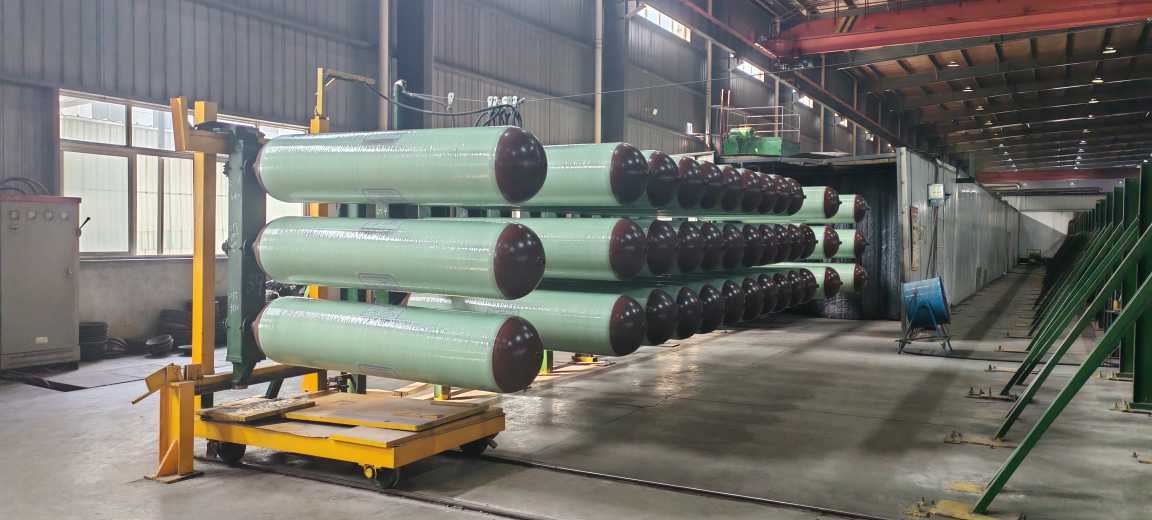

This 260L CNG Type 2 cylinder is constructed with a 30CrMo steel liner + fully-wrapped fiberglass composite, combining high strength with lightweight properties. It is ideal for automotive, marine, and industrial gas supply systems.

Key Specifications

• Working Pressure: 200 bar

• Test Pressure: 300 bar (exceeds industry standards)

• Minimum Wall Thickness: 5.9 mm (high-pressure resistant design)

• Dimensions: 426mm diameter × 2135mm length

• Weight: 150.0 kg (lighter than traditional steel cylinders)

• Certifications: ECE R110 & ISO 11439-2013 (internationally recognized)

• Thread Connection: W28.8 / PZ27.8 / 3/4-"14NGT (universal compatibility)

Key Advantages

1. Superior Safety

• 30CrMo steel liner + fully-wrapped fiberglass for excellent impact and fatigue resistance.

• 300 bar test pressure ensures reliability under extreme conditions.

2. Lightweight Design

• Only 150 kg, 30% lighter than all-steel cylinders, reducing vehicle load and improving energy efficiency.

3. Internationally Certified, Globally Compliant

• Complies with ECE R110 (EU automotive gas standard) and ISO 11439-2013 (international CNG cylinder regulations).

4. Wide Range of Applications

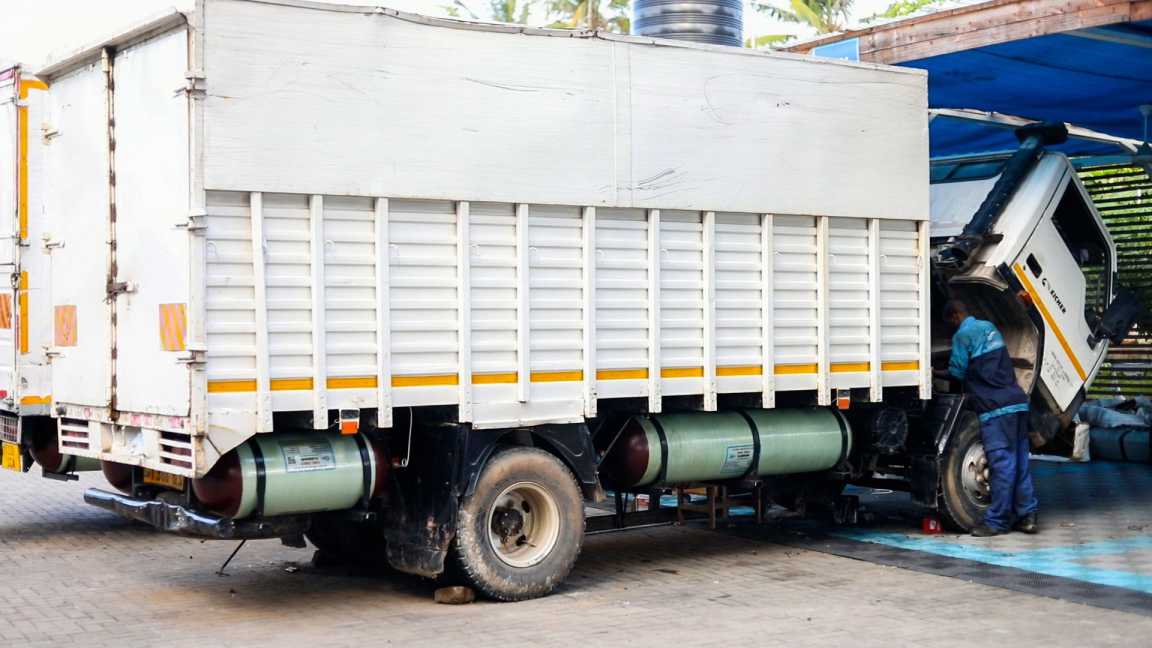

• Suitable for CNG vehicles, buses, marine fuel systems, and industrial gas storage.

Typical Applications

• Clean Energy Vehicles – Eco-friendly and cost-effective.

• Marine Power Systems – High efficiency with reduced emissions.

• Industrial Gas Supply – Safe and reliable high-pressure storage.

Choose high-quality CNG cylinders for a greener energy future!
